Towards the optimal quantum computer Isotope-controlled silicon carbide for solid-state quantum devices

Von Dr.-Ing. Patrick Berwian*

Anbieter zum Thema

At Fraunhofer IISB, a research group is developing optimized base materials and process technologies for solid-state quantum electronics using silicon carbide (SiC). The starting point are SiC layers epitaxially deposited on SiC wafers with precisely defined concentrations for the silicon and carbon isotopes.

Colorful: Fraunhofer IISB is using its expertise in silicon carbide (SiC) epitaxy to develop optimized base materials for solid-state quantum electronics based on SiC. Within the isotope-controlled SiC layers, defined point defects (“color centers") can be created that serve as quantum bits (“qubits") in electron quantum devices.
Colorful: Fraunhofer IISB is using its expertise in silicon carbide (SiC) epitaxy to develop optimized base materials for solid-state quantum electronics based on SiC. Within the isotope-controlled SiC layers, defined point defects (“color centers") can be created that serve as quantum bits (“qubits") in electron quantum devices.
(Source: Kurt Fuchs / Fraunhofer IISB)

Quantum technology will change the world. Based on groundbreaking research results, numerous players from science and industry are already working on a variety of completely new applications. Politicians have also recognized the disruptive potential of quantum technology and its social dimension and have launched major funding programs. Hence, revolutionary technological developments can soon be expected in the fields of quantum optics, quantum communication, quantum sensor technology and, in particular, quantum computing.

But the quantum revolution will only take place as long as there is a practical platform technology for quantum devices and quantum systems. The quantum computers that exist today consist of complex opto-electronic designs and are very sensitive to the smallest external influences. The quantum registers used there only operate at temperatures close to absolute zero and require highly intricate cooling. Another challenge is the connection to the existing information and communication technology. In the long term, such large-scale solutions are of greater interest for research purposes or for commercial cloud computing providers. In contrast, industry and small and medium-sized enterprises would have a high demand for their own supercomputers for a variety of complex simulation tasks and optimization problems that could be perfectly solved by quantum computing.

Solid-State Devices as a Gamechanger?

A way out of this dilemma is offered by quantum devices whose quantum bits consist of so-called color centers. Quantum bits, or qubits for short, represent the smallest quantum information unit. A color center is a special atomic defect in the crystal structure in which a single lattice atom is missing. Alternatively, a color center can be a cluster of a few impurities in the material where impurity atoms replace lattice atoms. Since the impurity can absorb and emit light, it is called a color center. Quantum information can then be stored in the electron spin of these color centers.

Currently, the wide-bandgap (WBG) semiconductor material diamond is particularly prominent and well researched. Diamond has excellent quantum properties, but this material is technologically difficult to handle and the integration with established electronic technologies is demanding. There are also efforts to realize qubits using classical silicon technology, sometimes in combination with germanium or graphene. The advantage: The complete range of proven semiconductor processes would be available for silicon-based quantum devices, and integration into established silicon electronics would be comparatively simple. That said, silicon is not a WBG semiconductor and therefore has less optimal characteristics as a base material for quantum devices.

Under these circumstances, solid-state devices based on the WBG semiconductor material silicon carbide (SiC) could open the way for quantum technology in broad fields of application. SiC-based semiconductor devices are now mass-produced. Currently, SiC components are proving their qualities in practical use, especially in the field of power electronics.

As in diamond, in SiC the quantum information can be stored in the spins of the color centers. But unlike diamond, SiC combines the highly attractive quantum properties with a mature material platform. The SiC platform offers, for example, commercial availability on a wafer scale, very good compatibility with established CMOS technology (CMOS: Complementary Metal Oxide Semiconductor) or the possibility to produce hybrid photonic, electron and mechanical devices.

Isotope Controlled Silicon Carbide

Color centers in SiC can be used for quantum information processing, quantum sensing or quantum communication. Such applications, however, require relatively long lifetimes of the quantum states, for example for the realization of complex computational tasks. In SiC, this can be achieved by transferring quantum information from a color center to the nuclear spins of neighboring silicon (Si) or carbon (C) atoms.

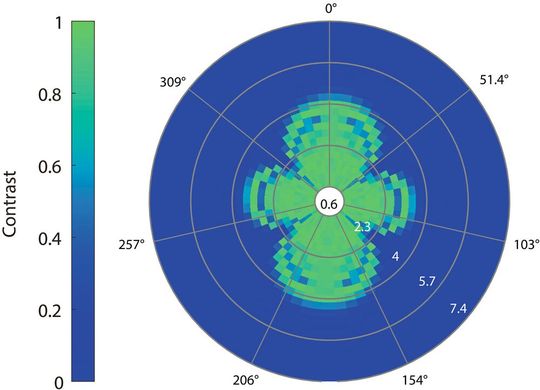

Simulation of the contrast: The signal quality of a nuclear spin, as a function of its position with respect to the central color center. The green shamrock-
shaped area represents the region of high-quality qubits.
Simulation of the contrast: The signal quality of a nuclear spin, as a function of its position with respect to the central color center. The green shamrock-
shaped area represents the region of high-quality qubits.
(Source: Shravan Kumar Parthasarathy / Fraunhofer IISB)

Not every Si or C atom in SiC is suitable as a quantum bit or memory. Only certain isotopes such as Si-29 and C-13, which occur in varying concentrations in SiC, can be used for this purpose. In current quantum research, isotopic concentrations that occur naturally in SiC have been investigated, or SiC material that does not contain such storage isotopes.

In contrast, Fraunhofer IISB focuses specifically on optimized material quality tailored to the respective quantum application. With its many years of expertise in the field of SiC epitaxy and a highly developed process technology, the institute approaches the production of epitaxial SiC layers with precisely defined isotope concentrations on SiC substrates. In this respect, the IISB is one of the few institutions worldwide that will be able to produce SiC material with properties specified exactly for the respective quantum application.
