Augmented Reality Compact Display Engine Optics for Smart Glasses

Ein Gastbeitrag von Dr. Peter Weigand*

Anbieter zum Thema

Smart glasses for augmented reality require compact and lightweight displays, that produce a bright, high-quality image. Find out how a tiny laser beam scanner and some clever software make this possible.

Augmented Reality: The Trixel 3 micro-display projector. Augmented reality glasses require a display engine that is compact, bright and high quality.
Augmented Reality: The Trixel 3 micro-display projector. Augmented reality glasses require a display engine that is compact, bright and high quality.
(source: TriLite)

Smart glasses for augmented reality (AR) have been around for more than a decade but have failed to gain traction as a popular consumer technology. One of the main reasons for this lacklustre uptake has been the bulkiness of the projector and optics, preventing their smooth fit into standard glasses for everyday use.

The basis of AR is that virtual objects are projected over the viewed area and objects located in front of the person wear­ing the glasses. For this technology to achieve wide acceptance, the so called head mounted display (HMD) must be as lightweight, comfortable and unobtrusive as possible.

And now, new developments in the field of optics and electronics are set to revolutionize the smart glasses market. Smaller, lighter display systems will enable stylish eyewear that will provide next-level AR features and a realistic user-experience.

The micro-display engine driving AR glasses requires two main components: a projector and an 'optical combiner' that bends and combines light beams from multiple sources and directs them into the eye. The system must provide bright, high-resolution, high-quality images that are clearly visible under all daylight conditions.

AR applications utilize two main categories of micro-display engines

There are two primary types of combiners suitable for AR glasses: holographic and waveguide types. Which is better? In general, a holographic combiner achieves greater efficiency in transmitting from the light source but has a significantly smaller 'eye-box'. This is an imaginary box within which the user's eye can move while still seeing the image correctly.

A large eye-box makes it possible for any­one to wear a pair of AR glasses, so even if they don't fit exactly, the viewer still sees a perfect image. This is essential to achieving mass AR adoption by consumers. Conversely, waveguide combiners have a larger eye-box but are far less light efficient.

AR applications utilize two main categories of micro-display engines: panel-based and scanner-based optical engines. Panel-based display engines consist of a two-dimensional (2D) array of pixels similar to a conventional computer monitor. The downside of this approach is that the minimum pixel size is constrained by manufacturing and efficiency factors, limiting the minimum panel size for a given image resolution, making panel-based systems relatively bulky and heavy.

Scanner-based optical engines, such as a laser beam scanner (LBS), deflect laser beams using moveable micro-electro-mechanical system (MEMS) mirrors. This enables them to display the individual pixels of an image in a time-sequential manner, much like on an old-fashioned cathode ray tube TV. Compared to a panel-based system,

LBS scanning approach delivers substantial advantages in terms of display engine size and weight. Other advantages of LBS over panel-based display systems include higher brightness and contrast coupled with lower power consumption and latency. Utilizing sinusoidal scanning movements along both the x and y axes following the 'Lissajous trajectory' requires less power to drive the mirror since the image is built up simultaneously over the entire display area rather than gradually line-by-line.

LBS systems also exhibit lower optical distortions than panel-based displays and typically provide a larger field of view (FoV) – the factor which determines how much of the world around is visible. The optimal FoV for next-generation AR devices is 30° across its diagonal.

The Trixel 3 system is a ultra-compact micro-display engine

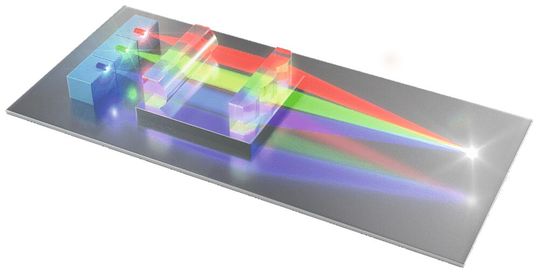

Figure 1: The RGB laser module.
Figure 1: The RGB laser module.
(source: TriLite)

Let’s take a closer look at the world's smallest LBS projection display, the Trixel 3 micro-display engine from TriLite. It weighs less than 1.5 g and take up less than 1 cm x 1 cm x 1 cm of space, making it ideal for AR glass applications. At the heart of Trixel 3 there is an integrated RGB colour laser module from TriLite and custom-designed microlenses specifically optimized for AR applications. TriLite's software-driven hardware architecture and proprietary high-precision laser bonding techniques substantially reduce the cost of the module without any compromises in image quality or performance.

A fundamental characteristic of Trixel’s architecture is the key role played by software, clearly differentiating it from the more common hardware-only systems. This software-driven hardware approach enables fewer alignment steps and higher alignment tolerances during manufacture, delivering noticeable benefits in terms of assembly yields and manufacturing costs. To enable customers to quickly launch their products on to the market, TriLite has qualified a high-volume manufacturing services platform based around partnerships with key suppliers for assembly and components such as the MEMS mirror from Infineon.
