Embedded Expanding Vertical Markets with Computing Maker Board

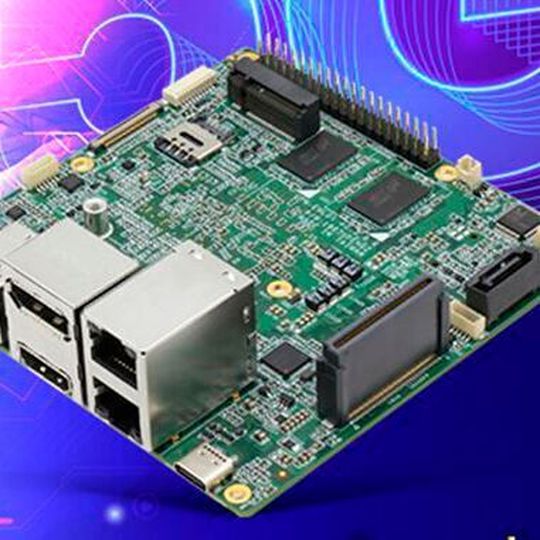

UP Squared 6000 by AAEON is a high-performance industrial computing maker board at small form factor (101.6mm x 101.6mm) powered by Intel® Atom® x6000E/RE, Pentium® or Celeron® N/J series SoC (formerly Elkhart Lake).

Anbieter zum Thema

ept GmbH

E.E.P.D. Electronic Equipment Produktion & Distribution GmbH

congatec GmbH

Aaeon Europe Niederlande

With the next-generation IoT-enhanced processors, UP Squared 6000 delivers up to 1.7x single-thread performance, 1.5x multi-thread performance, and 2x graphical processing performance enabled by Intel® UHD Graphics (11th Generation GPU) to help customers optimize their vertical markets.

Aside from significant performance upgrades, UP Squared 6000 supports Intel® Programmable Service Engine (PSE) that enables remote management even when the system is powered off.

The onboard TPM (Trusted Platform Module) 2.0 ensures system security from tampering.

For further expandability and scalability in edge AIoT verticals markets, UP Squared 6000 comes with multiple M.2 sockets for Intel® Myriad X module, NVMe storage, 5G connectivity and Wi-Fi5/6 modules. In addition, UP Squared 6000 features 40-pin GPIO (HAT-compatible) and 100-pin board-to-board connector (available in Intel® Atom® x6000E/RE SKUs only) for I/O expansions through a carrier board.

For further expandability and scalability in edge AIoT verticals markets, UP Squared 6000 comes with multiple M.2 sockets for Intel® Myriad X module, NVMe storage, 5G connectivity and Wi-Fi5/6 modules. In addition, UP Squared 6000 features 40-pin GPIO (HAT-compatible) and 100-pin board-to-board connector (available in Intel® Atom® x6000E/RE SKUs only) for I/O expansions through a carrier board.
